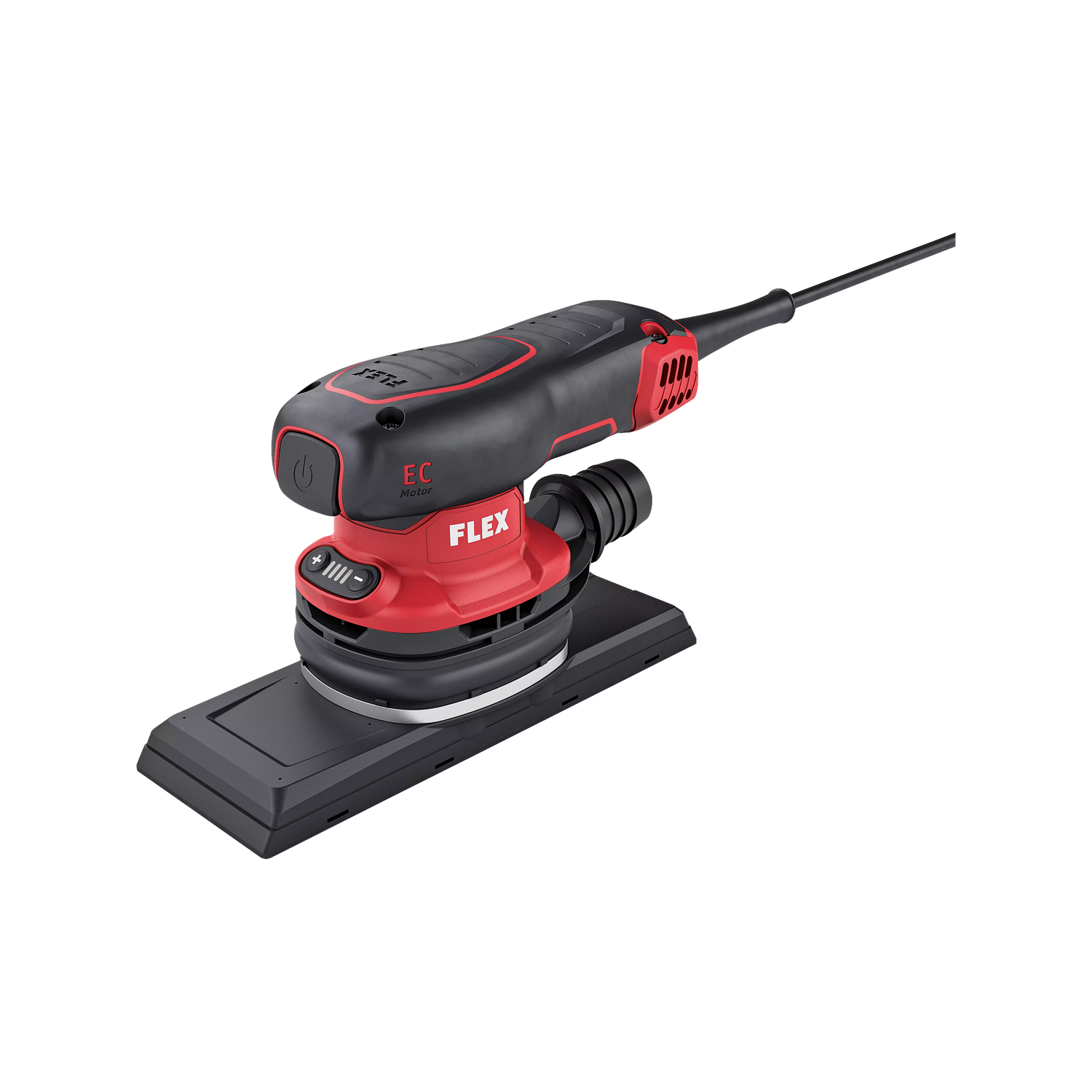

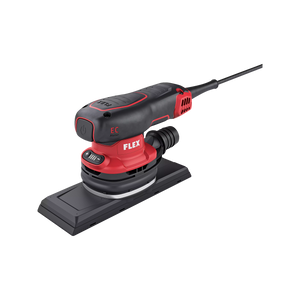

FLEX "OSE 2-70x198-EC" Orbital Sander 70×198mm 1 Stück

Orbital Sander with Brushless Motor and 4-Stage Speed Control — FLEX OSE 2-70x198-EC

What is the FLEX OSE 2-70x198-EC? The FLEX OSE 2-70x198-EC is a 260-watt orbital sander with a 70×198mm hook-and-loop sanding pad, brushless motor, E-signal switch, 4-stage speed control, and integrated self-extraction — the precise tool for sanding paint, filler, and surface finishing in bodywork and detailing.

In bodywork and vehicle preparation, you need a tool that operates evenly, with controlled vibration, and adjustable speed on a 70×198mm surface for body panels, door cutouts, pillars, and narrow areas. The FLEX OSE 2-70x198-EC delivers exactly this performance: a rectangular sanding format for flat and geometrically challenging work areas, combined with a brushless motor for higher efficiency and longer service life, and a 4-stage electronic speed control between 10,000 and 20,000 strokes per minute. Its weight of only 1.3 kg makes it one of the lightest tools in this performance class — a decisive advantage during long sanding days.

• Brushless Motor — Higher efficiency, longer lifespan, less maintenance. The brushless motor of the OSE 2-70x198-EC operates without mechanical wear from carbon brushes. In practice, this means: the motor runs at a more consistent temperature, consumes less energy for the same sanding performance, and the drive's lifespan is significantly longer than models with brushes. For businesses that use the device daily, this is a relevant cost advantage — fewer breakdowns, no brush changes, lower operating costs over the service life.
• 4-stage speed control between 10,000 and 20,000 min⁻¹ — the right speed for every material. Paint sanding, filler sanding, primer sanding, fine wood sanding — every material requires a different sanding speed. The four stages of the OSE 2-70x198-EC are specifically matched to typical sanding situations: low stages for delicate paints and fine clear coat sanding, high stages for fillers, primers, and coarser material removal. The stage control maintains the selected speed even under load — no drop in speed when pressure is increased.
• E-Signal Switch with Quick-Stop — Safe operation with immediate shutdown. The E-signal switch of the OSE 2-70x198-EC allows for easy, safe one-handed operation. The quick-stop function brings the sanding pad to an immediate halt after releasing the switch — no coasting, no uncontrolled sanding when setting down the tool. On body surfaces with delicate paint, this provides direct protection against unintentional sanding marks.

Practical Tip from Detailing1: Always operate the OSE 2-70x198-EC for paint sanding with the vacuum connection (Ø27mm) and a connected Class M vacuum cleaner — the integrated self-extraction alone is not sufficient to keep the surface clean during filler sanding. Use speed stage 2 or 3 for fine clear coat sanding, and stage 4 only for filler and primer sanding. The 70×198mm format is particularly suitable for flat areas such as the bonnet, roof, and fenders — for curves and wheel arches, it's better to switch to an eccentric sander.

OSE 2-70x198-EC — Brushless Motor, E-Signal Switch, and Device Concept in Detail

The brushless motor of the FLEX OSE 2-70x198-EC is the technological core that distinguishes this orbital sander from older, brushed models. Brushless motors (BLDC — Brushless DC) use electronic commutation instead of mechanical sliding contacts. This eliminates the most common cause of wear in power tools: worn carbon brushes that spark, stress the motor windings, and need regular replacement. The OSE 2-70x198-EC does not require brush changes — the motor runs until the machine's technical lifespan is exceeded.

In practice, this translates into smoother operation: the brushless motor maintains the set speed more precisely, reacts faster to load changes, and operates with less energy consumption for the same torque. For intensive sanding operations over several hours, this means: the tool stays cooler, sanding performance does not drop, and the operator experiences less fatigue because the tool lies more stably in the hand and vibrates less.

The E-signal switch is more than an on-off button. It combines an ergonomically favorable operating position with quick-stop electronics: when the switch is released, the motor actively brakes instead of coasting freely. For an orbital sander with a 2mm stroke and up to 20,000 strokes per minute, coasting without quick-stop is noticeable — the sanding pad still moves when the tool is already placed on the surface. With the quick-stop, this does not happen. For delicate clear coat surfaces that react to every uncontrolled sanding movement, this is a crucial quality factor.

The low-vibration design of the OSE 2-70x198-EC, achieved through special balancing, reduces the transmission of vibrations to the user's hand and arm. Vibration exposure (HAV — Hand-Arm Vibration) is a relevant occupational safety issue in professional sanding work — limit values according to the EU Machinery Directive and national ArbSchV must be observed. The optimized balancing in the OSE 2-70x198-EC does not reduce the daily permissible operating time, which allows for longer uninterrupted sanding phases.

10,000–20,000 Strokes per Minute in 4 Stages — Speed Control and Practical Operation

The 4-stage electronic speed control of the FLEX OSE 2-70x198-EC gives the user full control over the sanding pattern. The four stages roughly correspond to the following speed ranges: Stage 1 (approx. 10,000–12,000 min⁻¹) for the finest fine sanding and clear coat preparation, Stages 2–3 (approx. 13,000–17,000 min⁻¹) for normal paint and filler sanding, Stage 4 (up to 20,000 min⁻¹) for primers, coarse filler sanding, and woodworking.

The constant speed electronics maintain the set stage even with varying pressure. In practice, this means: if the user increases pressure — for example, when sanding a recess or transitioning from a flat surface to an edge — the electronics try to keep the stroke rate at the set level. The sanding pattern remains more consistent than with tools without constant speed, which break down under load and leave uneven sanding marks.

The 2mm sanding stroke format of the OSE 2-70x198-EC is specifically designed for fine sanding work. A 2mm stroke produces a very fine, cross-free sanding pattern without the circular marks that random orbital sanders with a larger stroke can leave. This makes this tool the first choice for final sanding phases before polishing, for preparing clear coat surfaces, and for all areas where the sanding pattern is directly beneath the finished paint layer.

The 4m power cord is designed for workshop use — long enough for a complete vehicle pass from a fixed location without an extension cord. The 230V operation ensures that the OSE 2-70x198-EC is immediately ready for use, without battery preparation and without charging interruptions. For businesses that use the sander daily and intensively, a mains-powered sander with a constant power supply is preferable to the 18V battery version in many situations — especially if sanding phases last longer than 30 minutes.

Multi-hole system, Self-extraction, and External Vacuum Connection — Dust Management of the OSE 2-70x198-EC

The multi-hole system of the hook-and-loop sanding pad of the FLEX OSE 2-70x198-EC allows the use of sanding papers with different hole patterns — as long as the pattern is adapted to the basic geometry of the sanding pad. This is a practical advantage over systems with fixed hole positions: a wider selection of commercially available sanding papers is compatible, without the user having to rely on proprietary abrasives. Standard 70×198mm multi-hole sanding papers are available from most professional abrasive manufacturers.

The integrated self-extraction with filter cartridge of the OSE 2-70x198-EC keeps the work area clean with moderate dust levels, without an external vacuum cleaner. For occasional use and outdoor work where no hose can be laid, this is a practical solution. The filter cartridge collects fine sanding dust and prevents it from settling on the surface and distorting the sanding pattern.

For professional bodywork and paint sanding in the workshop, self-extraction alone is not sufficient. Filler sanding and primer sanding generate significant amounts of dust in a short time — the filter cartridge saturates quickly, and the suction power of the self-extraction is significantly lower than that of a connected workshop vacuum cleaner. This is where the Ø27mm external vacuum connection comes into play: with a connected safety vacuum cleaner — for example, the FLEX VCE model of the appropriate capacity class — the sanding surface is reliably kept dust-free, which extends abrasive life and improves the sanding pattern. For sanding wood (beech, oak) and other dust class M materials, a Class M certified vacuum cleaner is legally required.

The bevelled pad geometry of the hook-and-loop sanding pad allows working in corners and at component transitions without fully seating the sanding pad. This is particularly relevant for bodywork where beads, edges, and transitions must be included in the sanding sequence without the need for separate edge processing.

Comparison FLEX OSE 2-70x198-EC vs. ORE 3-150 EC and ORE 5-150 EC — Orbital Sander or Random Orbital Sander?

The choice between the FLEX OSE 2-70x198-EC and the random orbital sanders ORE 3-150 EC and ORE 5-150 EC is a decision about the sanding pattern and the geometry of the surface to be processed, not about the sanding quality itself.

The OSE 2-70x198-EC sands with a rectangular 70×198mm sanding pad in a pure orbital motion. This creates a uniform, parallel sanding pattern without a circular structure — ideal for flat areas such as bonnets, roofs, doors, and fenders, for narrow areas such as pillars, roof frames, and sills, and for geometries where a round sanding pad does not lie cleanly. The rectangular geometry of the sanding pad also allows sanding right up to edges and into corners, which is not possible with a round pad.

The random orbital sanders ORE 3-150 EC (3mm stroke) and ORE 5-150 EC (5mm stroke) work with a round 150mm disc in a combined eccentric and rotary motion. This sanding kinematics is particularly suitable for large, curved surfaces, for paint preparation on curves, and for areas where faster material removal over a larger circular area is desired. The 5mm stroke of the ORE 5-150 EC produces more aggressive removal than the 2mm stroke of the OSE — an advantage for coarse preparatory work and fast filler sanding. For final sanding before polishing, the smaller stroke is more sensitive.

The recommendation for bodywork shops: those who sand both flat areas and contours and edges need both types. The OSE 2-70x198-EC for edges, pillars, narrow areas, and all places where the round eccentric disc does not fit. The ORE 5-150 EC as a random orbital sander for large curves, bonnets, and roofs with high surface throughput. The FLEX line offers both types in a compatible design — same ergonomics, same abrasive interface, same quality level.

Buy FLEX OSE 2-70x198-EC — the Orbital Sander for Bodywork, Paint, and Detailing

The FLEX OSE 2-70x198-EC is the right choice for body shops and detailers who need a precise, low-vibration, and powerful tool for paint sanding, filler sanding, and clear coat preparation. The combination of brushless motor, 4-stage speed control, E-signal switch with quick-stop, and the proven 70×198mm format makes it a full-fledged professional device for daily use.

Its weight of only 1.3 kg is a significant advantage during long sanding days. Those who sand several vehicles daily appreciate a lightweight tool that puts less strain on the arm and allows for more precise guidance over the surface. The 4m cable provides the necessary reach in the workshop without relying on a battery — the more practical solution for intensive continuous work.

Those who prefer the battery version — for example, for outdoor use, mobile preparation, or a cordless workflow in the workshop — will find the battery-powered variant in the same sanding format on the FLEX 18V platform with the FLEX OSE 2-70x198 18-EC. For workshops already working with FLEX 18V batteries, adding the battery orbital sander is possible without additional battery investments — a clear advantage of the FLEX system strategy.

Included in the delivery is the hook-and-loop sanding pad (531313). Sanding papers in the required grits — typically P400–P800 for finishing paint sanding, P120–P240 for filler — should be selected separately according to the respective work step. The wide availability of standard sanding papers in the 70×198mm dimension makes consumable planning uncomplicated.
